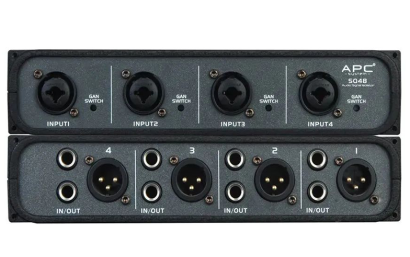

Product Overview Normally, the voltage of the shielding layer of the audio or stereo signal transmission cable is 0V. When the ground loop/ground loop phenomenon exists in the multimedia system, the level will fluctuate around 0V, and more seriously, it will cause serious distortion of the audio stereo signal and interference phenomena such as low-frequency AC "buzzing" sound and high-frequency "buzzing" sound of on-board sparks. When the audio signal transmission distance exceeds 100 meters, it is easy to generate high ground loop voltage. If the ground loop voltage is too high, it may even cause the signal source or receiving equipment to be burned, and in severe cases, it may endanger the user's life. The audio isolator SQ48 can eliminate and solve the above situations. Product Features √. Low background noise, no 50Hz AC "buzzing" sound, no high-frequency "sizzling" interference, and high-level CD sound quality. √. Point to point balanced transmission of audio, with the option to select any interface (6.35/com/xLR) from a set of 4 interfaces for input, and output from any of the other 3 interfaces (6.35/com/XLR) in this group √ Excellent more than 60dB-CMRR, high anti Common-mode interference suppression capability √. Plug and play, without any operating system restrictions, without the need for component installation and debugging √. No need for TCP/IP settings, no need for firewalls, and no security vulnerabilities √. Isolation filtering for audio transmission, with the farthest transmission signal of 100-150 meters √. Supports plug and play, supports hot swapping, does not require power, does not require software settings and maintenance √ Small and user-friendly design, with low requirements for installation environment √. Built in transient, surge suppression, and anti-static protection circuits √ Waterproof, small size, and light weight √ Working 24/7, stable and reliable performance Product performance indicators: Input and output isolation insulation withstand voltage: above 300Vp-p Characteristics of multi-channel isolation noise suppressor: equipment insertion loss<0.5dB, return loss>18dB Max (input output, input level: 0.5Vp-p (Min) -1Vp-p -3Vp-p (Max) Simulated ground loop isolation and noise reduction processing Frequency response: 20HZ-20KHZ (±<0.2db ref 1khz) Common mode suppression: ＞ 68dB @ 1KHz Stereo channel isolation: 62dB Input impedance: 600 Ω Input interface: XLR balanced interface Output impedance: 600 Ω Output interface: XLR balanced interface Rated loss: ＜ 0.5db (ref 1khz 1V rms) Insulation resistance: DC1000V 100M Ω Isolation voltage: AC 50Hz -60Hz 0V -1500V Maximum input level:+6dBu...
