Dio4S

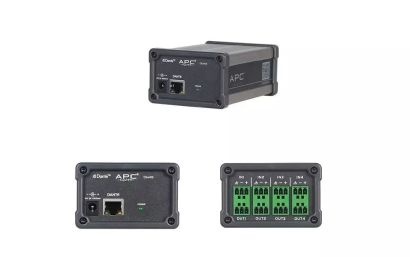

summary In Dante's system, the four inputs of Dio4s are an ideal interface for adding microphones/lines to the system. The four balanced line outputs can be used simultaneously, and all audio channels are used together with the Dante network. It adopts a miniaturization with an integrated mounting bracket, allowing it to be installed in a small space near the sound source (such as under a table) to reduce the number of analog cables. On balanced or unbalanced connections, the Dio4S has 4 balanced microphone/line inputs, uses a 3-pin Phoenix plug pluggable connector, and has 4 balanced line outputs. It also uses a 3-pin Phoenix plug pluggable connector. Front panel power indicator light, Dante network interface, and power interface. Dio4S is powered by an external+12 VDC power supply. Specification parameters Network interface: 1 * RJ45 Audio input Input type: 4 balanced/unbalanced inputs Input compensation:>1.8K Ω Maximum input level:+4dBu @ 0dB gain Audio output Output type: 4 balanced/unbalanced outputs Output compensation: 200 Ω balance Maximum output level:+4dBu balanced Audio metrics EIN: -115dBu System THD+N:<0.02% Frequency response: 20Hz -20kHz,+/-1dB dynamic range THD+N:<0.02% @ 1khz, input signal less than maximum 3dB Dante Network Physical level: Standard network Connector: Single RJ-45 Cable quality: CAT-5 Conversion speed: 100 Mbps Power requirement:+12V DC Power consumption: 10W Max...
